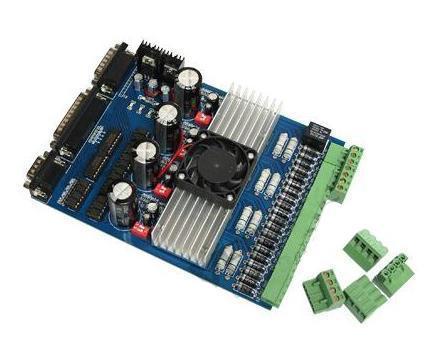

4 Axis CNC Stepper Motor TA8435H Driver Board Mach 2 3
Only simple English Manual comes with this driver board, so you should know electronics if you want to purchase it, thank you !
The new design for the T8435: the 4 axis T8435 stepper motor driver . In adaption of the prono position 8435 chip , we install the larger thermal sink in the bottom, and adapt the FR307 heavy current diode. The new design of the wire-connection and the pin-insert, this two-way input design makes the connection more convenient.The semi-flow uses the 555 chip.
* Toshiba TA8435H chip - maximum 2.5A drive current !Click here to down load TA8435H Data sheet
* Chip 555 adapts the SOP( SURFACE MOUNT)
* In application of the SMT solder-reflow technic.
* Add the 24V and 5V indication LED light
* Use the DCDC as the isolation of the front and the end power supplys, in order to protect the parallel ports
* The manual control connector and the limit connector use the DB15 and DB9 connection port support the relay extension
* Please connect the power supply to the power switch of 12-24 V, 5A
* Also we have suitable power supply for selling, please feel free to contact us if you have any demands !
* The power output of 12 V shall be applied to the radiator fan of 12V.
* The interface of driver shall be connected with 2-phase, 4/6 wires stepper motor within 2A current
* This board can work with both unipolar and bipolarstepper motors
* Support most parallel softwares KCAM4, MACH3 etc.
* Power supply: 12V-24V DC, 5A
* Output current: peak value 2.5A per phase (2A recommended)
* Resolution setup: full step, 1/2, 1/4, 1/8
* Dimension: 18(L) x 13(W) x 3.6(H) cm
* For more information, pls click here to Download User Manual
* 1 x Software CD (Mach3 + English User Manual)
